Axo Mechano Bioreactor

Axo Mechano Bioreactor is a precision instrument developed for deforming scaffolds,
flexible membranes, and 3D matrices in a sterile fluid environment. This device is capable
of uniaxial deformations on flexible cell-seeded substrates or scaffolds. It has an onboard
actuator and control board to enable it to run independently of a computer in an
environment-controlled incubator.
Combining All
Stimulation Types
Axo Mechano Bioreactor allows implementing the mechanical stimulation and electrical stimulation simultaneously. You can observe the applied force and all the data regarding your motion function.
Stand-alone
Controlling System

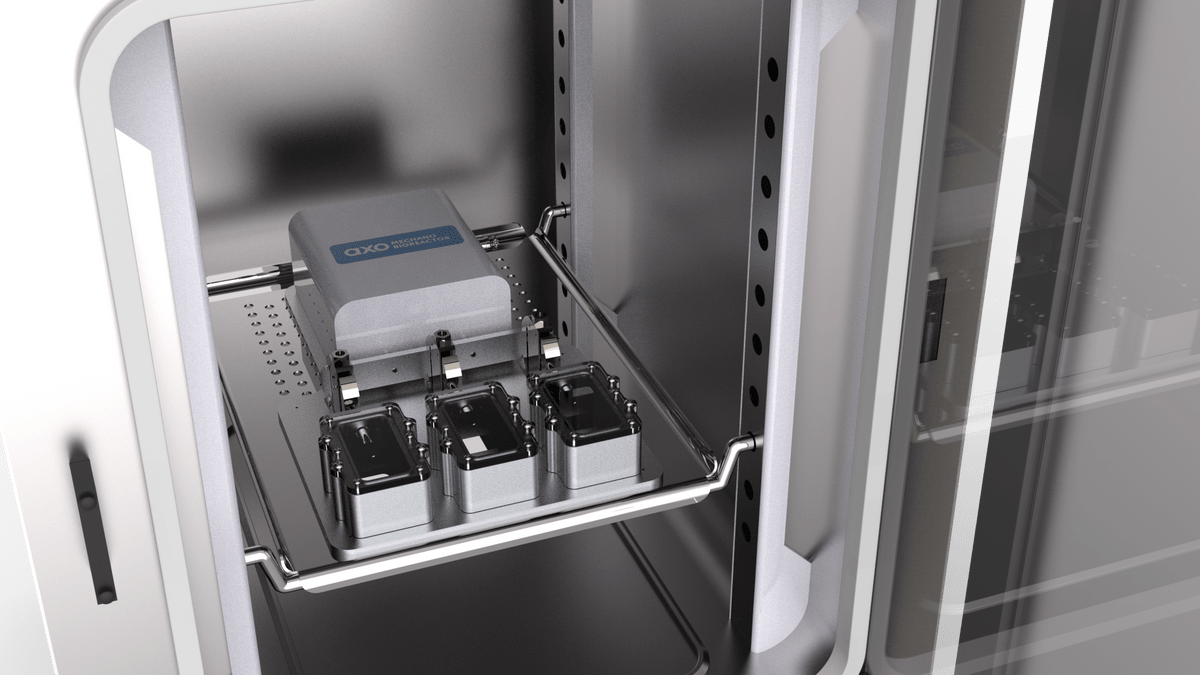

Axo Mechano Bioreactor is specially designed to fit inside incubators. Thanks to our tailor-made software, it can operate without any USB cable connection.
Multiple Options

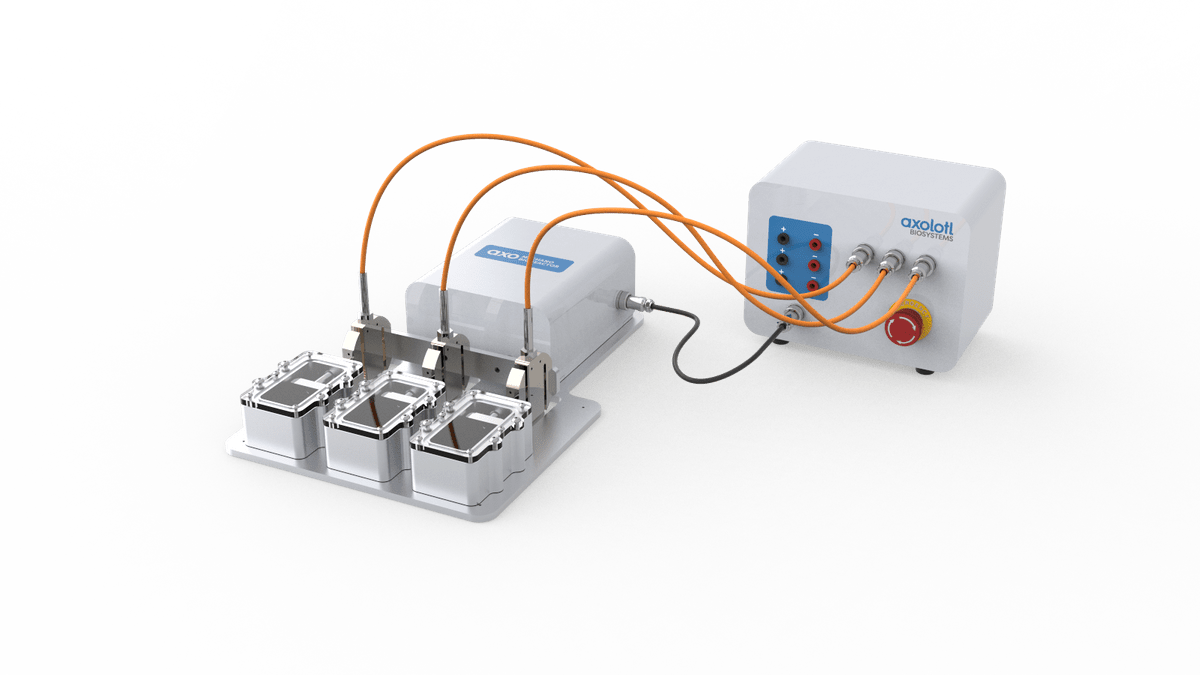

Vertical & Horizontal

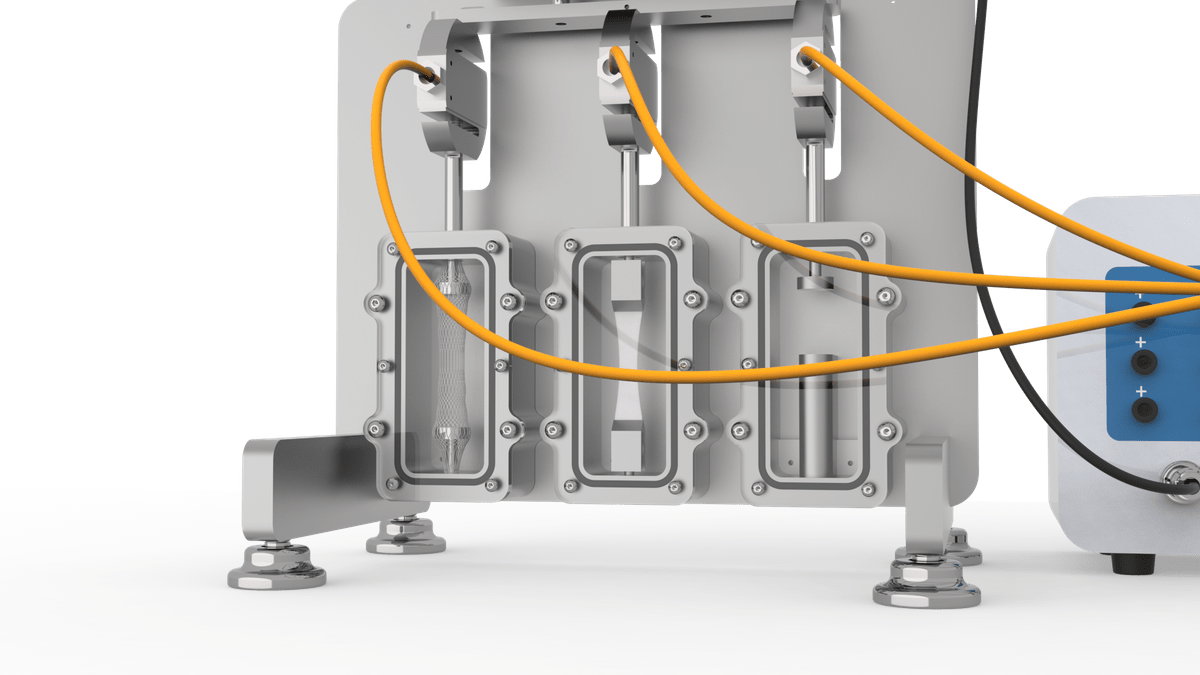

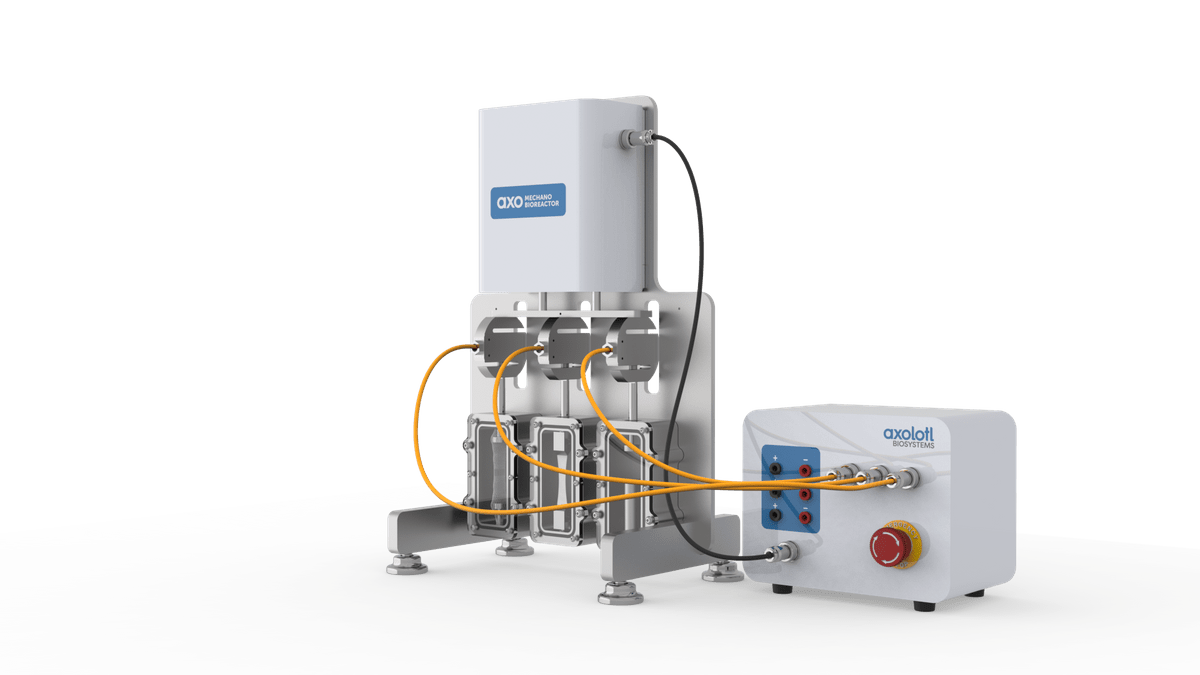

The vertical version of Axo Mechano Bioreactor allows the simultaneous implementation of compression and tension types of mechanical stimulation.
Autoclavable
Stimulation Chambers
The mechano bioreactor chamber is made entirely of autoclavable materials such as stainless steel and coated aluminum.

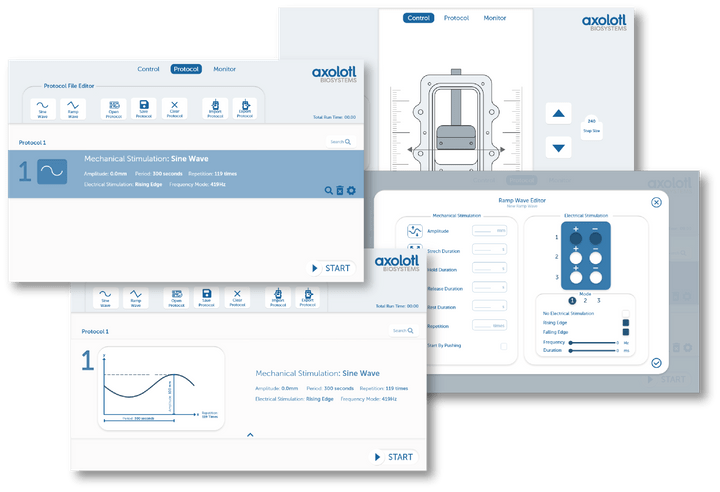

Easy to Use Software
The software specially developed for researchers makes it possible to work easily regardless of scaffold length.

Test Blocks and Protocols
The sine and ramp functions in the software enable stimulation based on different mathematical models.
Technical Specifications

Mechanical Stimulation Type
Uniaxial Tension
Cell Culture Chamber
Up to 3
Maximum Velocity
<10 mm/s
Cell Contacting Components
Autoclavable Materials
Loading Capacity
<200 N
Media Volume
<100 mL
Stimulation Chambers
Stainless Steel
Connection
USB
Electrical Stimulation
Available
Output Voltage Range
0 - 30 V
We would love to give you more information about Axo Mechano Bioreactor
We are ready to answer any questions you might have.
